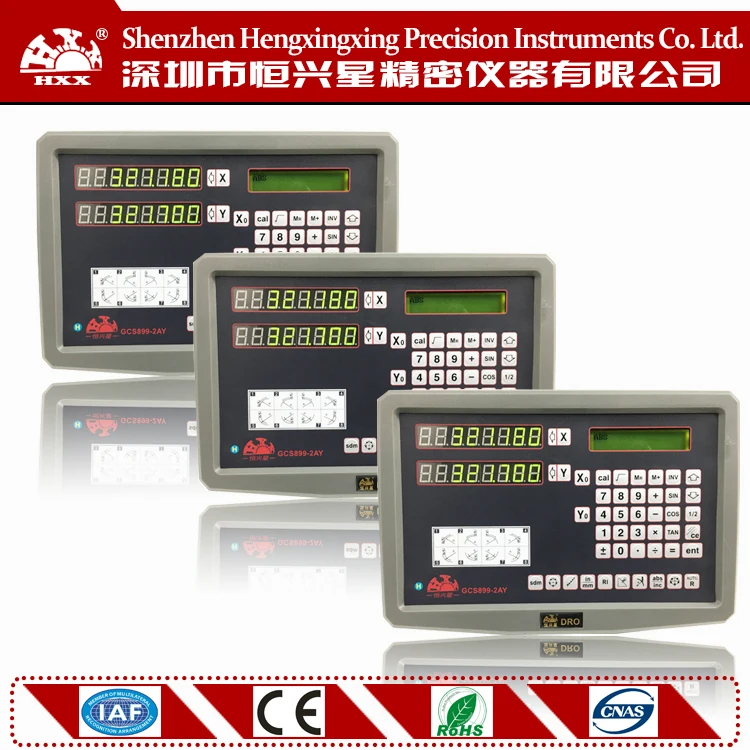

lathe grinding machine Central controller 2 axis digital readout

FOB Reference Price:Get Latest Price
  • >=5 Sets
    $65.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HXX
Model Number:
GCS899-2Y
Is_customized:
Yes
Digital Readout(DRO):
2 axis
DRO Power Supply:
80-250V,50HZ-60HZ
DRO Reading Resolution:
0.5um,1um,2um,5um,10um
DRO Size:
292*210*80 mm
Application:
DRO is used for mill/lathe/milling/cutting machines, etc
After-sales Service:
1-year warranty
Supply Ability
Supply Ability:
500 Set/Sets per Week
Packaging & Delivery
Packaging Details
Carton bubble/wooden cases filled with foam
Port
shenzhen
Lead Time :
shipped in 5 days after payment
Product Description



Dear Buyer, please note

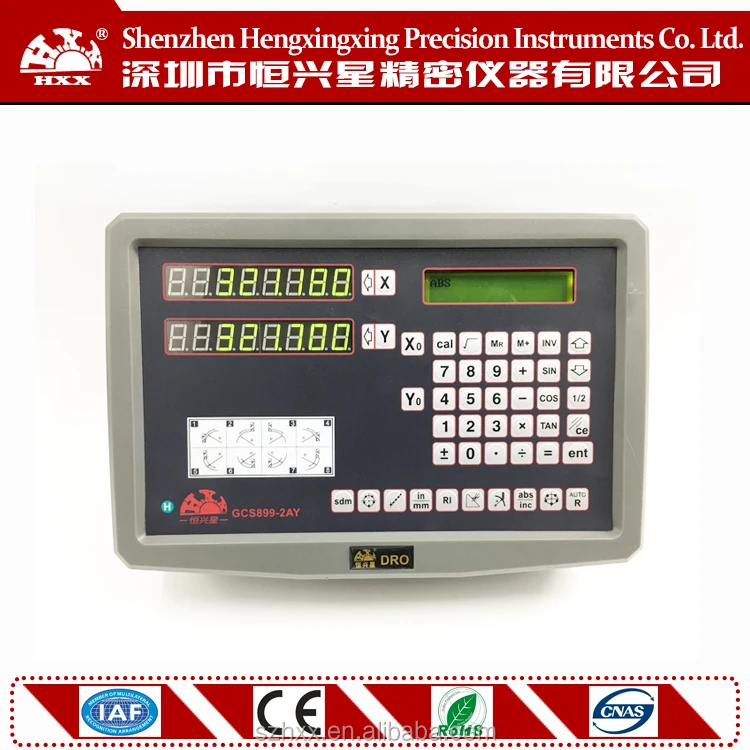

1. The goods is included one dro GCS899-2AY.

2. If you need other styles and dro, just contact with the seller, we can offer you all kinds of goods.

3. We are true hxx factory about dro and linear scales in China ten years, so we can offer you a good price.

4. The price is not included the duty fee.






DRO Futures

DRO digital readout parameter

1.Voltage Range: AC 80V~264V/50HZ~60HZ
2.Acceptable Signal: TTL square wave
3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um

Advantage
1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
2. The wide voltage AC80-260V can be widely used in all over the world.
3. We offer US, AU, EU, UK different type plug suite for different countries if need.
4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.



Function

1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering

20:vibration filtering

21: Lathe function

21: Daimater/Radius function



Linear scale Futures

Linear scale parameter
1. Travel (measuring) length: 0-1000mm / 0-40inch
2. Total (overall) length: Travel length + 140mm
3. Plug: DB9
4. Resolution: 0.005mm / 0.0002“ (0.001mm is option from extra)
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 2.5 or 3 Meter (about 9 feet)







Packaging & Shipping

Packaging







Company Information
Our Company

You can see the picture, all is from our workshop. If you need it, call me anytim.



This is awesome, service you all the time



The workshop



production process


Our Services

Warranty&After-sale service

1. 24-hours technical support by E-mail



2. Provide extra accessories for the machine Also provide service of make program according to your drawings Customized or special design is OK.



3. All of our products’ warranty period for 12 months.



4. Man-made destroy will be exception.



5.We can supply the materials or tech support to our customers to help them fix the problems.

We will pay the delivery charge if the repair, return or replacement cases happen.
