2019 Professional multi-function 3 axis digital readout with linear scale dro CE certification

FOB Reference Price:Get Latest Price
$50.00 - $300.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HXX
Model Number:
GCS900-3D
Digital Readout(DRO):
3axis
DRO Power Supply:
AC 80V~264V/50HZ~60HZ
Travel Length of Linear Scale:
50-3000mm(can be customized)
Linear Scale Resolution:
5um/5 micron
Output Signal:
TTL
Cable Length:
3 meters(longer available)
Main Material:
aluminum alloy&plastics&glass
After-sales service:
1-Year warranty
Interface Signal:
DB9 TTL square wave
Supply Ability
Supply Ability:
99999 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Normal package
key words : digital readout meter , 2 axis digital readout for lathe , milling machine digital readout .
Port
ShenZhen
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 15 To be negotiated
Video Description



             We are one of the biggest manufacturer in China ,We have been working on linear scales ,digital readout ,magnetic scales, other precision products over 19 years, We can provide customize service ,Only us can provide professional products with best price ,If you have special requirement , Please contact to us and let us know , Thanks .

Product Description
Our service :
Customer need to let us know the travel length , resolution(accuracy), and used for which kind of machine , then we will come out solution and send out quotation .Our linear scales travel length normally is 50-3000mm ,Resolution is 0.5u, 5u ,1u ,Output signal is TTL signal .Linear scale total length=travel length+140mm(It can be customized too)

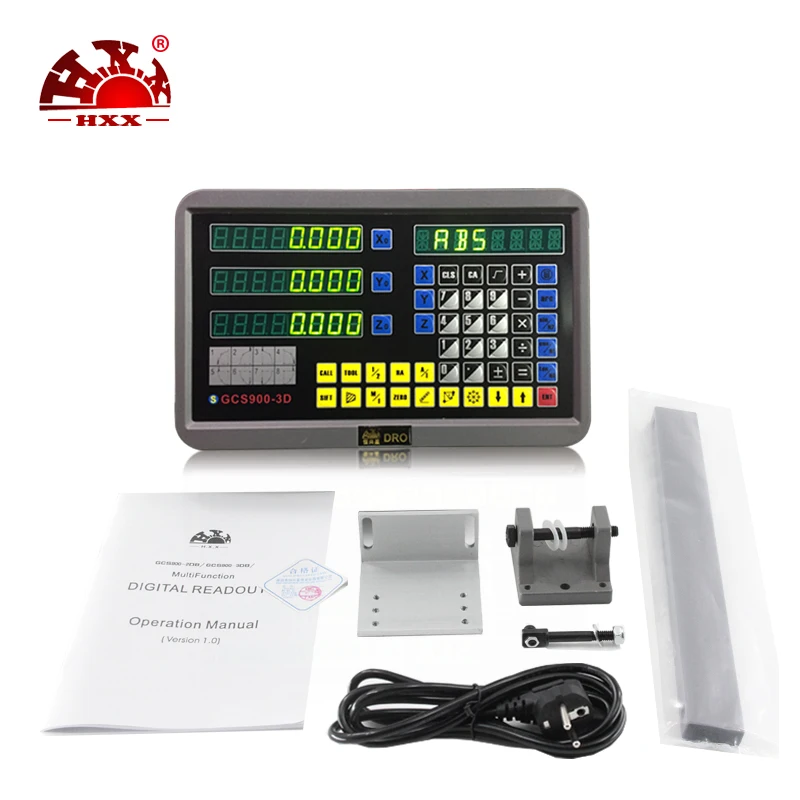

The most popular models is : 2 axis digital readout GCS900-2D one whole set , 3 axis digital readout GCS-9003D one whole set ,If you are interested in it , Please contact to us and let us know .Thanks .






DRO Specifications



Advantage
1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
2. The wide voltage AC80-260V can be widely used in all over the world.

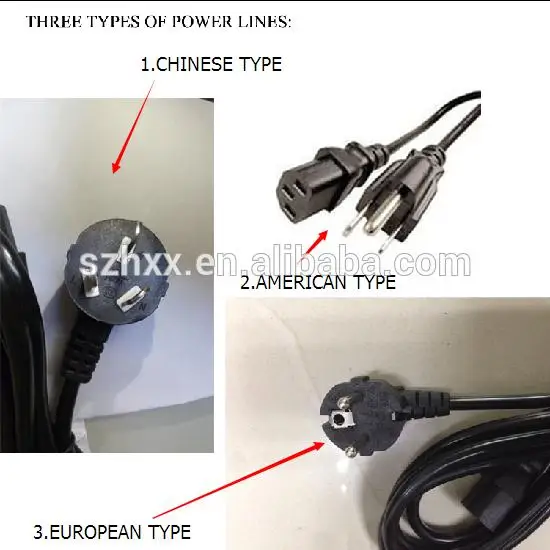

3. We offer US, AU, EU, UK different type plug suite for different countries if need.
4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

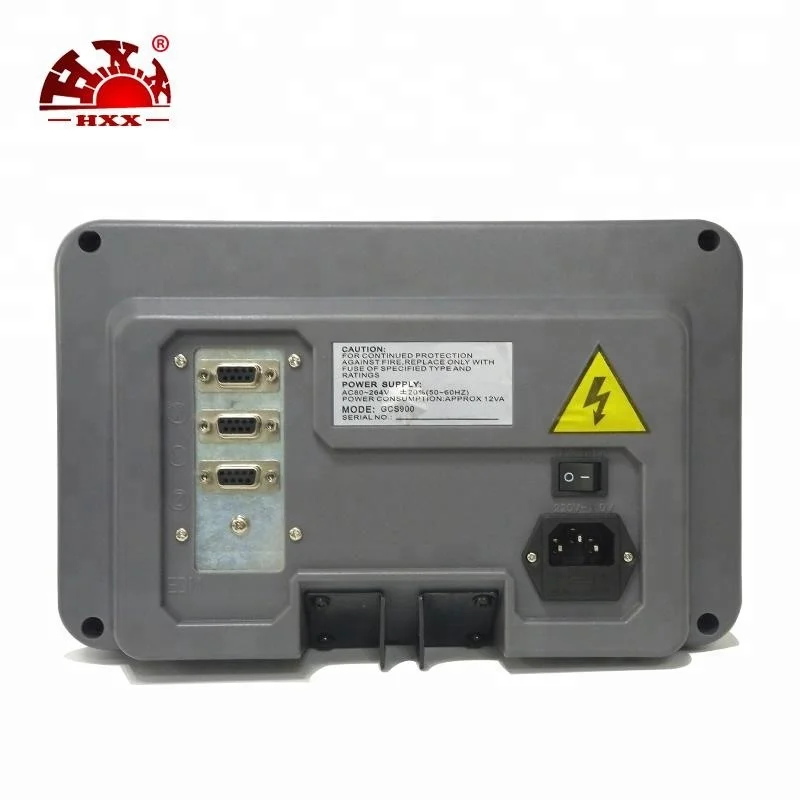

DRO Specification :



Color               Black

Digital Readout(DRO)   3 axis

DRO Power Supply    80~250V,50~60HZ

DRO Reading Resolution  0.5um,1um,2um,5um,10um

DRO Size  276*173*77 mm

DRO is used for mill/lathe/milling/cutting machines, etc

Place of Origin  Guangdong, China (Mainland)

After-sales Service  1-year warranty

MOQ:             1pc

Signal line length:     2.5m or any longer you want

Weight             0.5~15kg

voltage range       AC85V~250V,50HZ~60HZ

Signal line length   2.5m or any longer you want

Power consumption : 25VA .

Net weight : 2.5kg .

Gross weight : 3.5kg .

Key board : pressure sensitive key pad

Display : 8 words display .




Linear scale parameter

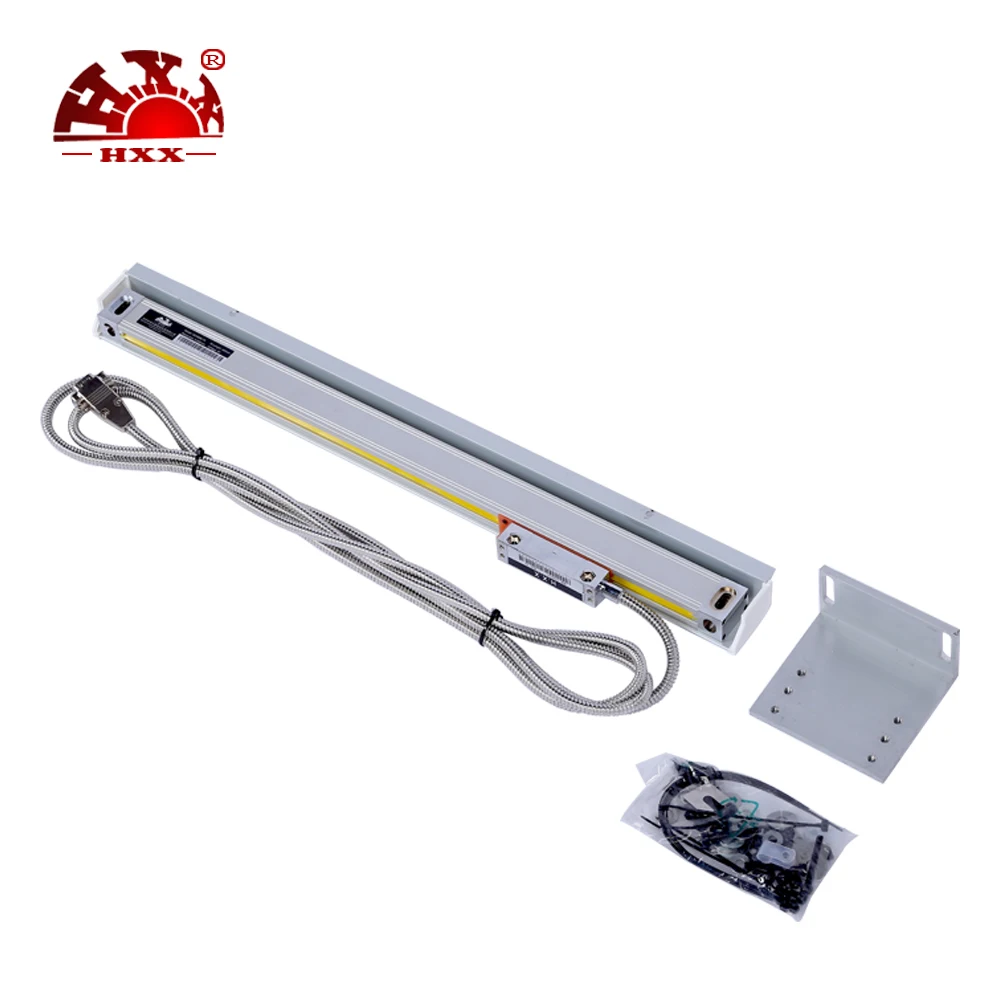

Linear scale Specification

1. Travel (measuring) length: 0-3000mm / 0-40inch
2. Total (overall) length: Travel length + 140mm
3. Plug: DB9
4. Resolution: 0.005mm / 0.0002“ (0.001mm is option from extra)
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 2.5 or 3 Meter (about 9 feet)


Standard linear scale drawing :

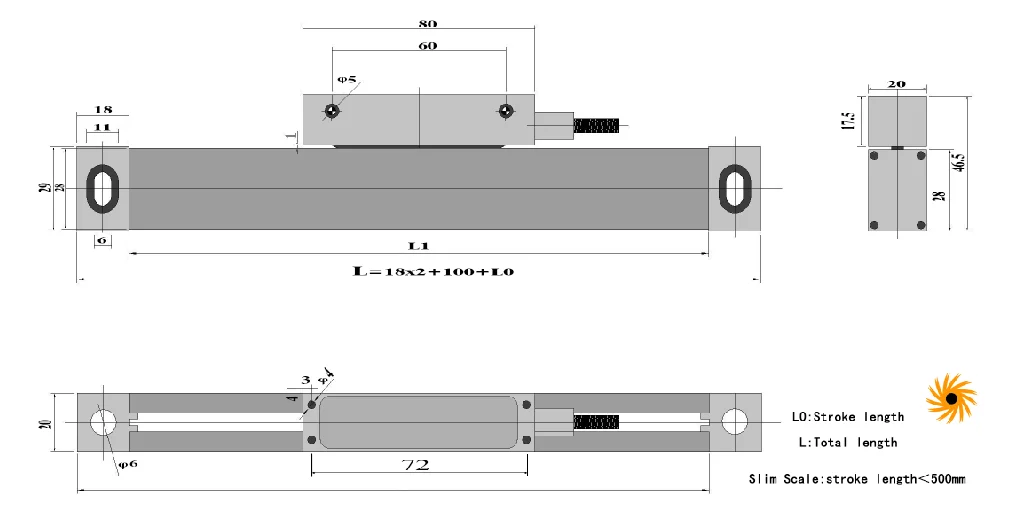

Slim scale drawing :

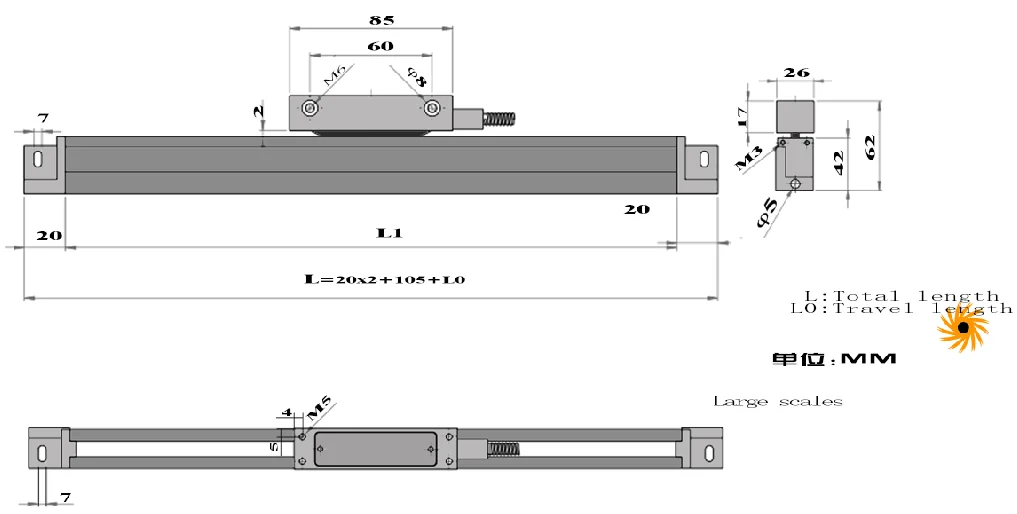

Large linear scale drawing :



Packaging & Shipping

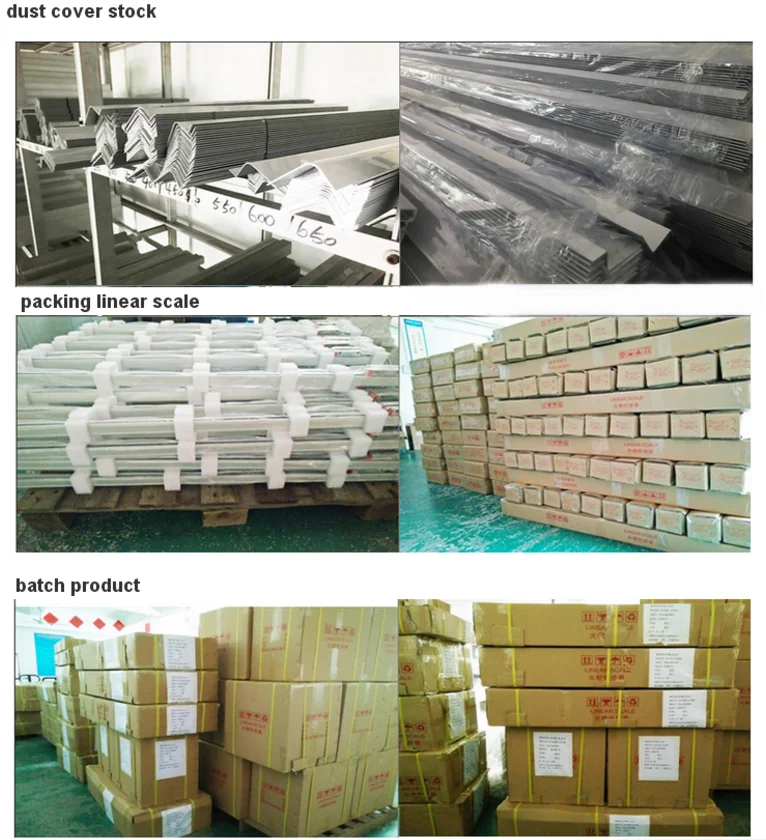

Packaging

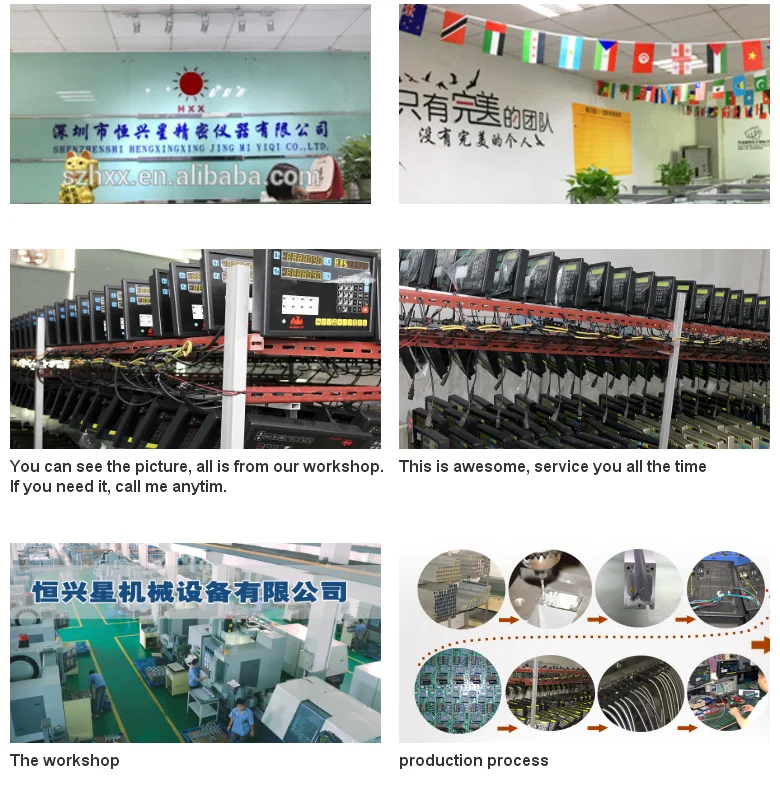

Company Information
Our Company








Why choose us

Company goal

Our goal is to supply the good quality products and offer a better price for you , to make business easier.Saving your time and money.



Intuitiveness or "Easy of  Use"

If the digital readout is poorly designed,too complicateed,if the display isn't bright enough, or in other words is 'user unfriendly',you'll regret your purchase decision . It simply won't matter what you paid, it's not worth it !



Support.

Perhaps most overlooked factor when buying a digital readout.Hundreds of videos are the best in the industry,and are available free fro you our customers.Our tech help is the best in the business. Any question , we would like to settle them together.



Parts.

Breaking a scale, you don't get to replace the entire digital readout kits.we can provide the key parts of  products .



warranty.

All of our products take one full year warranty.Normally, the service time is 3-4 years in experience.



Customer Service.

We pledge to never 'over sell' you on a products that won't work well for you.Our philosophy is to try and save you money and get the best value kit tailored to the machinery you have.



Shipping.

We get strong logistic agents no matter where is the destination around the world. Every time our duty is to get the economical freight for you.



Price.

Probably the price is very important factor when buying a digital readout .We are sure you get the best price from us because we are the factory in this line more than 8 years. we believe you get what you pay for.

Our Services

Warranty&After-sale service

1. 24-hours technical support by E-mail



2. Provide extra accessories for the machine Also provide service of make program according to your drawings Customized or special design is OK.



3. All of our products’ warranty period for 12 months.



4. Man-made destroy will be exception.



5.We can supply the materials or tech support to our customers to help them fix the problems.

We will pay the delivery charge if the repair, return or replacement cases happen.



Contact

1.Our working time: 8:00am~6:00pm



2. All inquiries will be replied within 24 hours, So please feel free to send us your inquiry.



3. when our trade manager is off line, please feel free to leave a message, and tell us the products with model you are interested in, and your E-mail address, we will reply to you within 24 hours.





key words : 2 axis dro , 3 axis dro , digital readout , linear scale ,linear encoder .
