HXX 5um high accuracy 2 axis minlling machine digital linear scale

FOB Reference Price:Get Latest Price
$47.00 - $73.00 / Boxes | 10 Box/Boxes (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HXX
Model Number:
GCS898, GCS896/GCS898/GCS899
Measuring Range:
50mm~1000mm
Resolution:
5μm(0.5μm/1μm)
Accuracy:
+/-5μm(5 μ ),+/-10μm(10 μ ) /1000mm
Grating Pitch:
0.02mm
Reaction Speed:
60m/min(0.005mm) 25m/min(0.001mm)
Cable:
3M(standard) Other(options)
Supply Voltage:
+5V DC (+/- 5%) 24V(PLC)
Output Signal:
TTL
IP Protection Class:
IP54
Supply Ability
Supply Ability:
400 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton bubble/wooden cases filled with foam
Port
shenzhen
Lead Time :
Shipped in 5 days after payment
Product Description
1.the product is CUSTOMIZED!
2. The price is not included the duty fee.
3. If you need other styles and dro, just contact with the seller, we can offer you all kinds of goods.
4. We are true hxx factory about dro and linear scales in China ten years, so we can offer you a good price.



Model Number
GCS896/GCS898/GCS899
Measuring Range
50mm~3000mm
Resolution
0.5μm/1μm/5μm
Accuracy
+/-5μm(5 μ ),+/-10μm(10 μ ) /1000mm
Repeat Accuracy
1 Resolution Count
Reference Mark
Periodic (25mm Spacing)
Grating Pitch
0.02mm
Working temperature
0--45℃
Reaction Speed
60m/min(0.005mm) 25m/min(0.001mm)
Reading Head Sliding System
Vertical Five Bearing
Signal Convey Cycle
20μm
Cable
3M(standard) Other(options)
Supply Voltage
+5V DC (+/- 5%)  24V(PLC)
Output Signal
TTL
IP Protection Class
IP54
Operating Temperature
0-50 degree

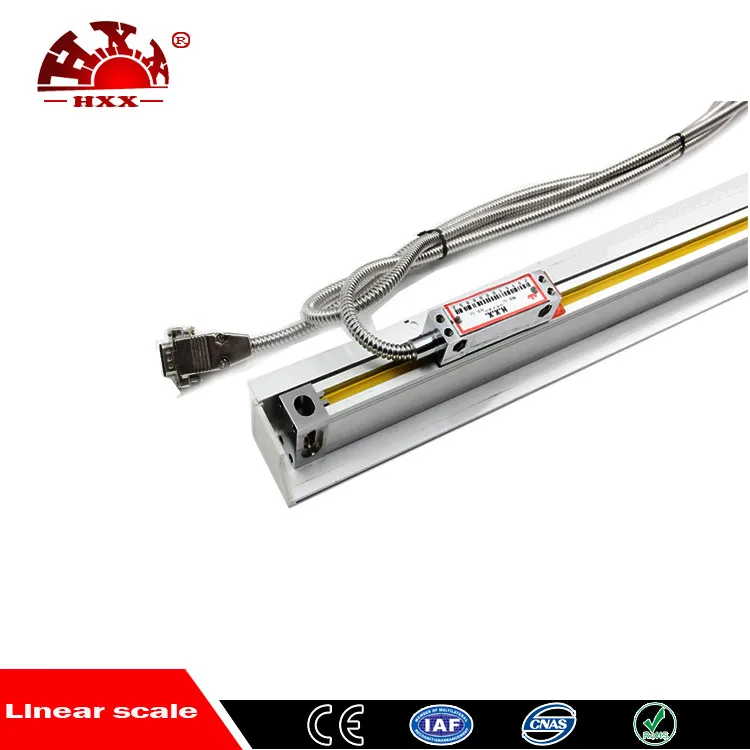

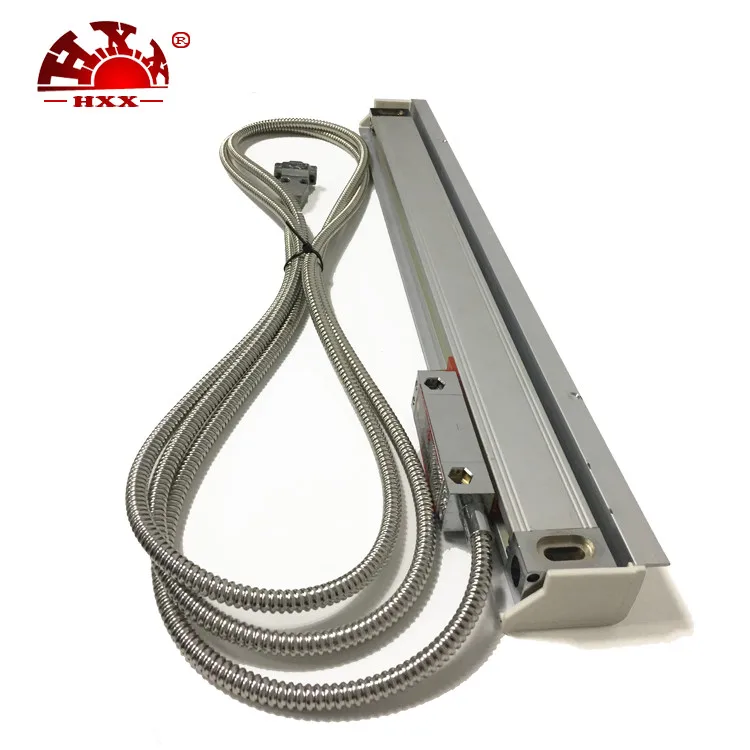

Products Show
Our Company

Factory

Our Factory

Workshop

our workshop

Warehouse

Our Warehouse

Team

Our Team

Our Service

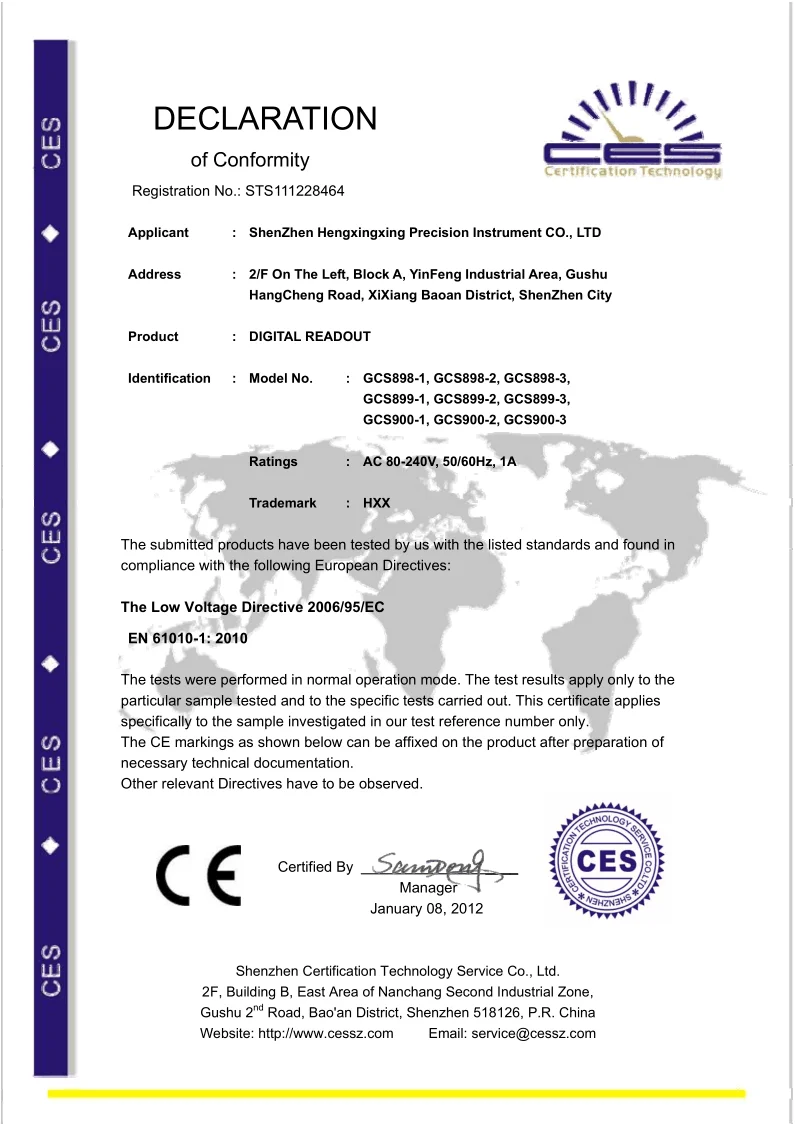

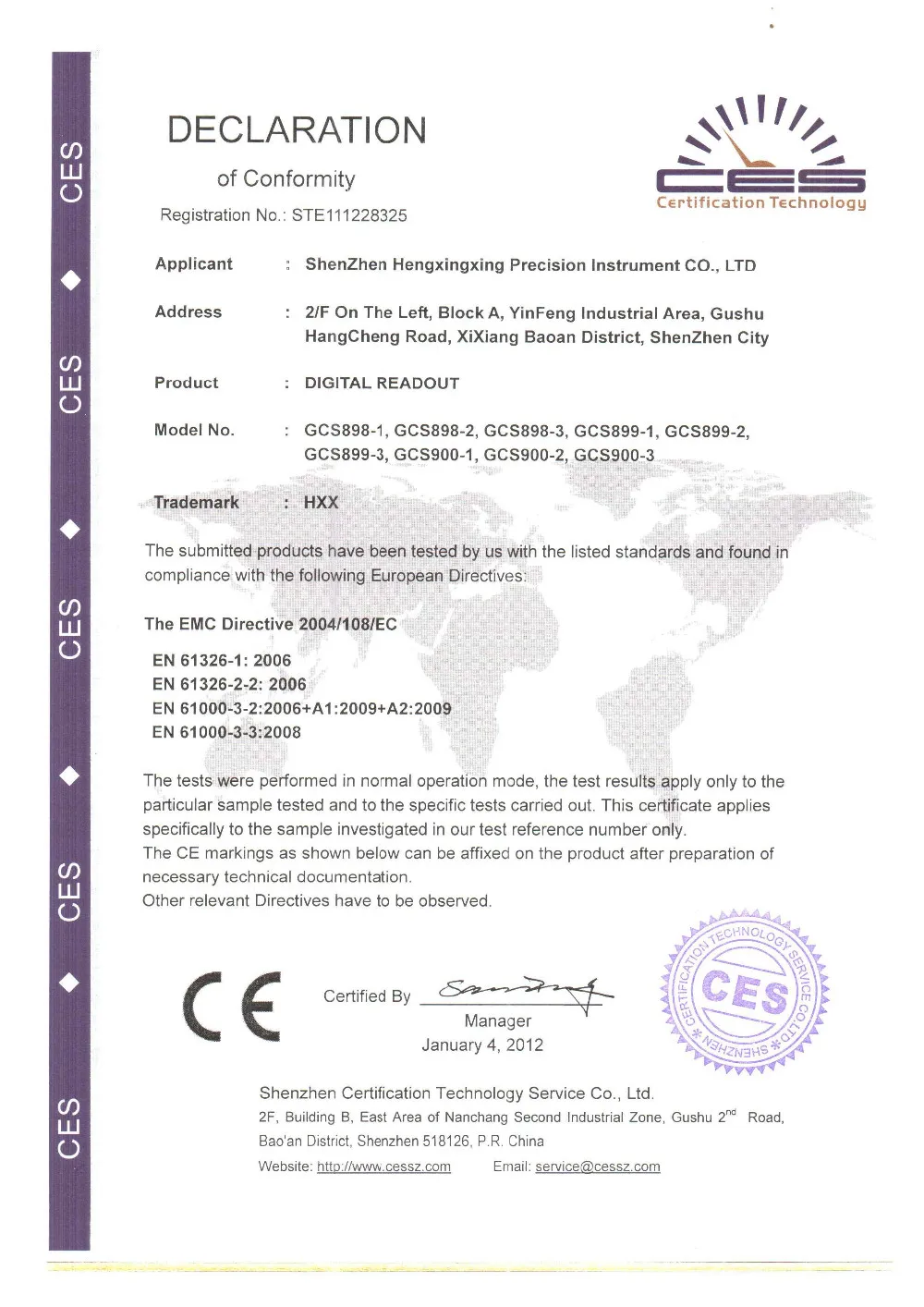

CE


CE

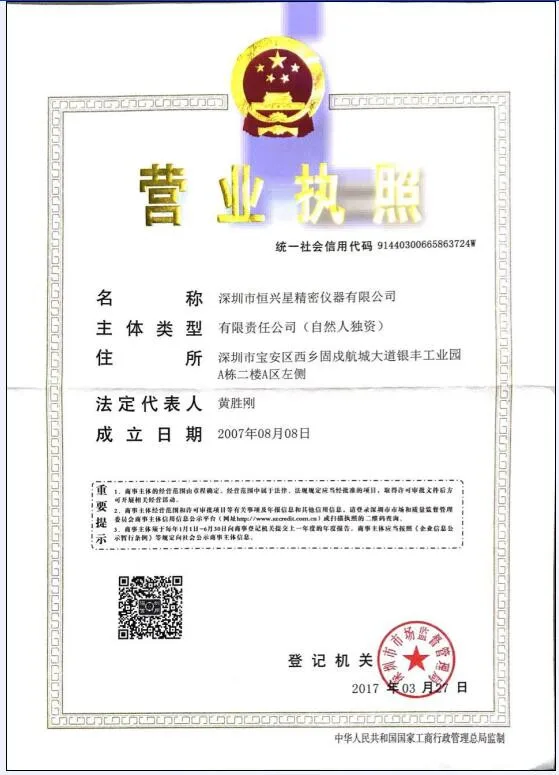

business license


Packing & Delivery

Packing Details  : carton/wooden cases filled with foam.8pcs/carton(DRO)

Delivery Details : Express(4-6 working days);Other channels can be negotiated

1.Packing by foam
2. Put into the carton
3. linear scale --Complete package
1. Packing by foam
2. Complete a small box
3. Complete package--DRO
Warranty&sfter

1. 24-hours technical support by E-mail
2. Provide extra accessories for the machine Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception.
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
